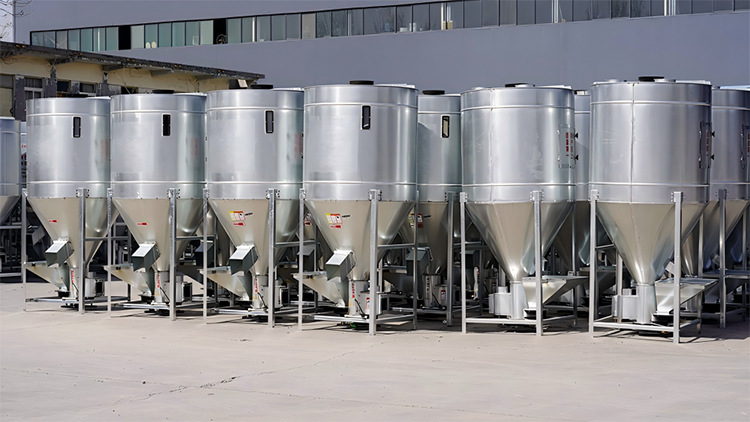

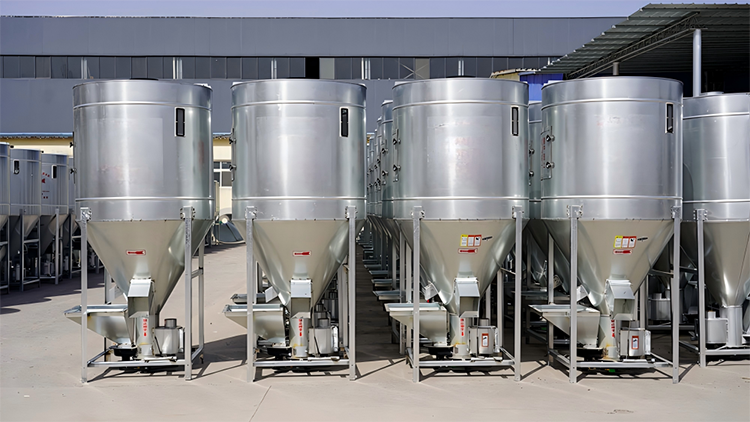

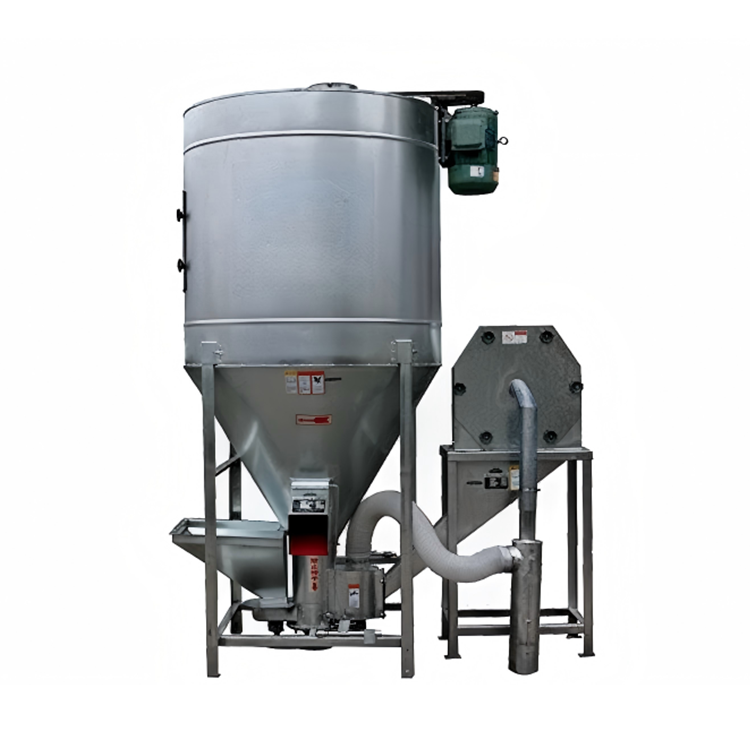

Feed Crusher and Mixer

This machine features an integrated crushing and mixing design. The processed feed is suitable for livestock and poultry including chickens, ducks, horses, cattle, dogs, sheep, rabbits and geese. It can also be used together with a feed pellet machine, making it especially ideal for feed production in small and medium-sized farms.

Equipment Overview
This machine features an integrated crushing and mixing design. The processed feed is suitable for livestock and poultry including chickens, ducks, horses, cattle, dogs, sheep, rabbits and geese. It can also be used together with a feed pellet machine, making it especially ideal for feed production in small and medium-sized farms.

Equipment Features
1. This feed unit integrates crushing and mixing functions. It features a compact footprint, easy installation and transportation, making it an economical choice.
2. The crusher is equipped with self-priming or forced feeding; materials that do not require crushing can be added directly.
3. The crusher is fitted with a cast iron grinding chamber, which effectively reduces noise during operation.
4. With low dust, low noise and low energy consumption, it is a cost-effective solution for small and medium-sized farms to produce complete formula feed.

Operation & Safety Precautions
1. To prevent accidents during transportation and handling of the feed crusher and mixer, inspect all bolts and nuts for tightness before use, especially the flat blades, round blades and main shaft nut. Rotate the pulley manually to check for any internal collision.
2. Ensure the machine runs smoothly and no foreign objects are left inside. Start the machine and run it idle for 3 minutes. Only begin operation if no abnormalities are found.
3. Always remove foreign materials from the raw materials during operation. Strictly prevent iron blocks, stones and other hard objects from entering the machine to avoid damage and personal injury.
4. The discharge cloth bag shall be at least 4 meters long and 0.6 meters in diameter, with not-too-dense fabric. Discharge materials timely during use to maintain sufficient air permeability of the bag.
5. Feed materials evenly and monitor the load of the power unit. The feeding rate can be adjusted with the slide gate regulator when crushing granular materials.

Equipment Model Parameters

Model	Size specifications (mm)	Crushing power (kw)	Mixing power (kw)
SLJ-500(Single phase electricity)	230010002400	3	3
SLJ-500-2	230010002400	7.5/11	3
SLJ-1000	250012502800	7.5/11	3
SLJ-2000	250015503100	15	4
SLJ-3000	250016503200	15	5.5
