Charcoal Briquette Extruder

A briquette machine is the core equipment for producing rod-shaped solid fuel from additive-free lignocellulosic materials such as wood chips, rice husks, peanut shells, and other agricultural residues.
Raw materials with a particle size of 3–5 mm and moisture content of 8%–12% are dried in a dryer, then formed into fuel under high temperature and high pressure.

Suitable Raw Materials:
Sawdust, bamboo dust, bagasse, cotton stalks, coffee husks, peanut shells, mustard husks/stalks, pine needles, rice husks, sugar mill waste, jute waste, coconut coir pith, and other wastes and residues such as castor husks, red sorghum stalks, tobacco stems, tea residue, sanding dust, tree bark, wild grass, shrubs, etc.

Working Principle
A high-temperature and high-pressure zone is created by the screw propeller and heating elements, compacting loose raw materials into hollow briquette rods.
This product features high density, small volume, and excellent combustibility, making it a viable alternative to firewood and coal.

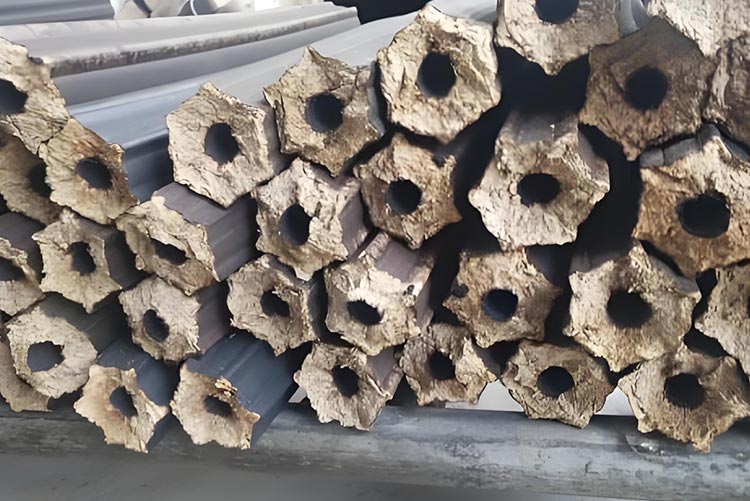

The standard outer diameter is 50–60 mm with a bore diameter of 15–20 mm, typically shaped as hollow square or hexagonal rods.
It can also be produced in spherical, granular, or honeycomb briquette forms.

Equipment Features
Capable of producing briquettes of various diameters.
The finished products feature high density, strength and hardness.
Our briquette machines offer higher capacity and lower energy consumption.
Suitable for raw materials with a moisture content of 8–12% and particle size below 3–5 mm.
This series of biomass briquette machines is a new generation of wood briquetting equipment, delivering more solid and durable finished products.
Equipped with an automatic temperature control system, this wood briquetting machine is designed to produce high-density biomass briquette rods.

Model Parameters

Model	Power (kW)	Dimensions (m)	Production (kg/h)	Finished product diameter (mm)	Weight (kg)
ZBJ50-9	18.5	2.20.61.3	150-200	50	550
ZBJ50-10	22	2.40.71.4	260-340	50	700
ZBJ50-C	22	2.70.71.55	240-300	50	750
ZBJ60-9	22	2.40.71.35	180-220	60	650
ZBJ70-9	22	2.40.71.4	240-280	70	730
ZBJ80-9	22	2.40.71.4	240-280	80	730

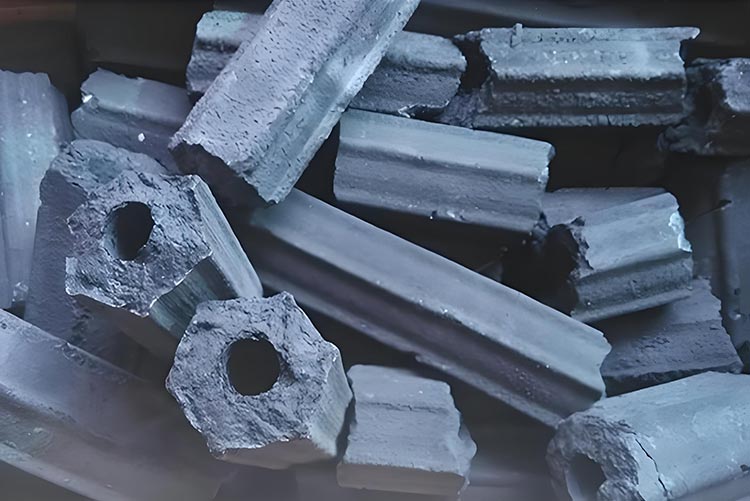

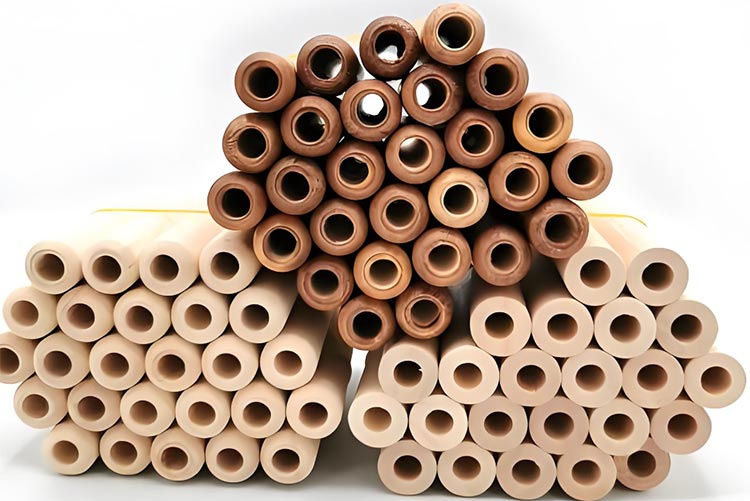

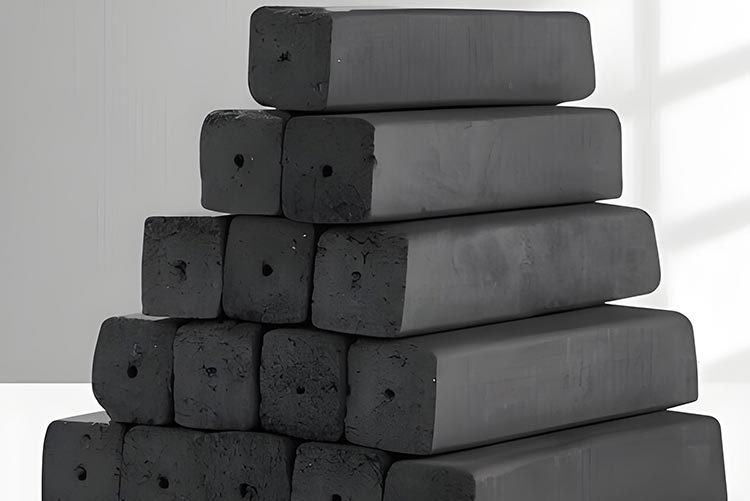

Finished product display
